Can be painted in any RAL colour from the Chart K7 classic chart (except for pearl and fluorescent colours).
Aritco PublicLift Access

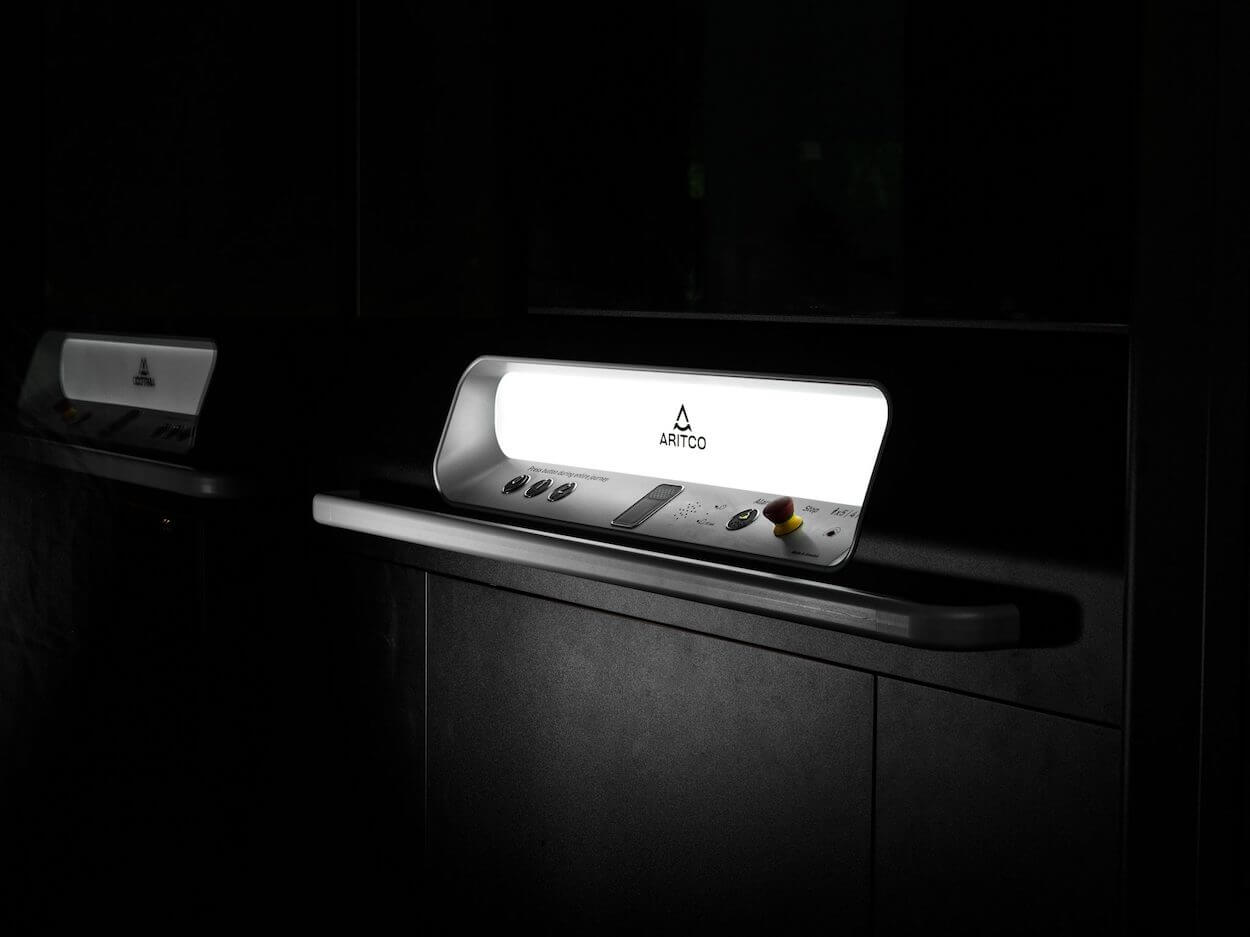

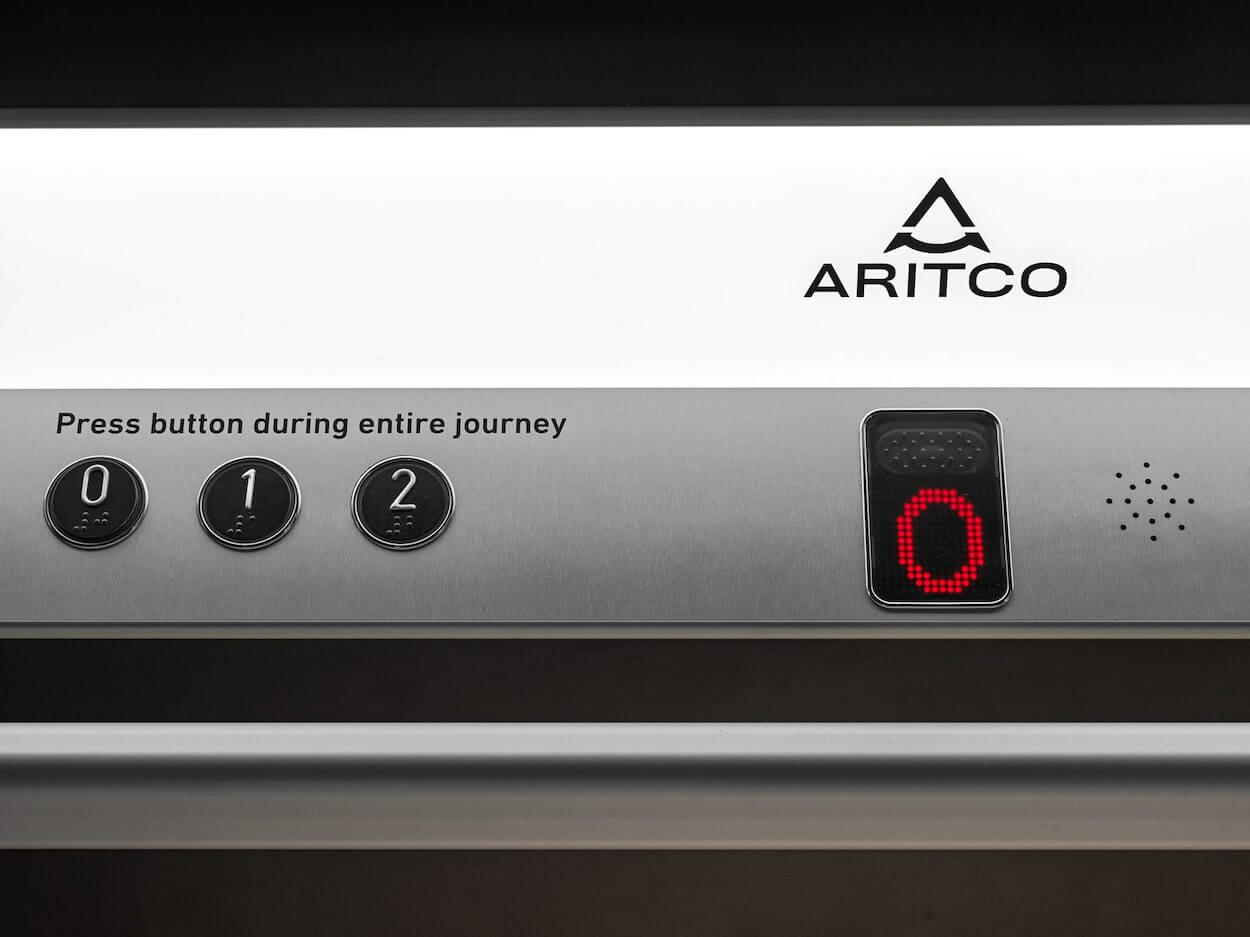

Aritco PublicLift Access is designed to make public and commercial buildings accessible for everyone. The elevator expresses Scandinavian design and features a backlit panel and lit handlebar.
ACCESSIBILITY IN PUBLIC & COMMERCIAL BUILDINGS
Aritco PublicLift Access is an elevator designed to provide reliable and safe access for everyone in public and commercial buildings. Practical and smart with sizes for all needs. Practical and versatile, it’s been engineered to achieve the highest standards of quality, safety and service life.
Key features
- Design, sizes and options tailored for public environments
- 95% recyclable materials
- Patented screw and nut technology (no oil that can leak)
- The lowest maintenance and operating costs on the market
- Equipped with our SmartSafety system with safety features for public environments.
Customize in LiftGuide
Customize your Aritco Public Lift Access in LiftGuide to suit all your needs. You can also see how the elevator will look like through augmented reality. Enjoy!
For architects we can serve you BIM files in REVIT and IFC4 format, enter LiftGuide here!
Technical specifications
Size
Platform sizes
900 x 1040 mm
900 x 1280 mm
900 x 1480 mm
1000 x 1280 mm
1000 x 1480 mm
1100 x 1480 mm
1000 x 1980 mm
1100 x 1580 mm
Exterior dimensions
1300 x 1160 mm
1300 x 1400 mm
1300 x 1600 mm
1400 x 1400 mm
1400 x 1600 mm
1500 x 1600 mm
1400 x 2100 mm
1500 x 1700 mm
Rated load
250 kg
410 kg
410, 500 kg
410 kg
410, 500 kg
410, 500 kg
500 kg
500 kg
Persons
2 pers.
5 pers.
5, 6 pers.
5 pers.
5, 6 pers.
5, 6 pers.
6 pers.
6 pers.
Wheelchair
-
Lone user or type A*
A or B with attendant*
Lone user or type A*
A or B with attendant*
A or B with attendant, adjacent entry*
A or B with attendant*
A or B with attendant, adjacent entry*
Lift Color
Glass Material
Clear glass
Tinted glass
Floor Material
Dark Grey, Vinyl
Light Grey, Vinyl
European oak, Vinyl
Oiled Oak, Vinyl
Aged Oak, Vinyl
Checker Stud Grey, Rubber
Checker Stud Black, Rubber
Aluminum
Technical Compliance
European Machine directive 2006/42/EC
European standard EN 81-41
Drive System
Patented screw and nut system
2.2 kW motor
Rated Speed
Max 0,15 m/s
Max 0,25 m/s outside Europe only
Travel Height
250 – 13 000 mm
Top Height
Min. 2 240 mm
(1 100 – 1 600 mm with half height door)
Number of Floors
2 to 6 floors
Installation
Recessed installation 50 mm below floor
Installed directly on floor with 50 mm ramp
Platform Controls
Hold to run (press and hold)
One touch operation (press one time) for installations outside europe
Application
Public environments
Indoor and outdoor installation environments
Emergency Lowering
Battery-powered
Power Supply
230 V 1-phase
400 V 3-phase

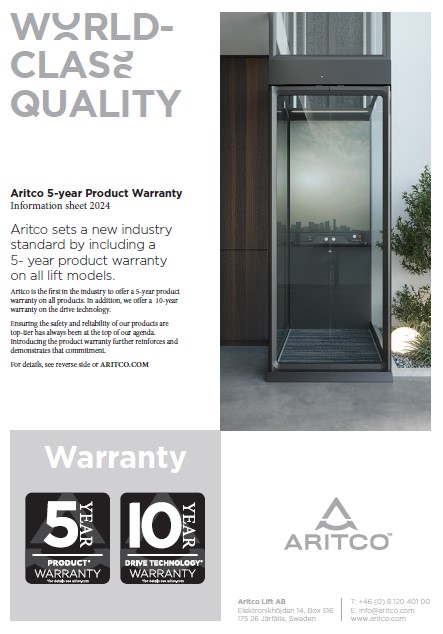

Warranty
Aritco PublicLift Access comes with a 5 year warranty.
The screw and nut assembly has a 10 year warranty.
