Thinking about how you should be able to stay in your home when you have trouble walking the stairs? Are your days full of activities with kids and shopping bags to carry up and down the stairs? Or are you just looking for more comfort and convenience?
Explore the Aritco HomeLift
Aritco HomeLift is designed to be that extra feature of your home. It is decorative and is a spectacular design feature, which makes your home unique. It provides you with that extra feeling of luxury, and it ignites the full potential of your home.
Key features
- Design, sizes and options tailored for private homes
- DesignWall - a backlit wall with selected art from prominent Scandinavian designers
- DesignLight with state of the art lighting which you can control via the SmartLift app
- The lift is operated via a unique solution, a steering wheel called the SmartControl
- Equipped with our SmartSafety system, with safety features, to meet all situations that can occur in a home, as well as to prevent accidents.
Technical specifications
Sizes
MODEL
S5
S8
S9
S12
S15
CARRIER SIZE
600 x 830 mm
1000 x 830 mm
1100 x 830 mm
1000 x 1200 mm
1100 x 1400 mm
EXTERIOR DIMENSIONS
966 x 880 mm
1366 x 880 mm
1466 x 880 mm
1366 x 1250 mm
1466 x 1450 mm
RATED LOAD
250 kg / 2 persons
250 kg / 3 persons
250 kg / 3 persons
400 kg / 5 persons
400 kg / 5 persons
Lift Color
Traffic white RAL 9016
Oyster white RAL 1013
Champagne RAL 060 70 10
Light blue grey RAL 200 80 10
Light sage green RAL 120 80 20
Pure white RAL 9010
Grey white RAL 9002
Light Ivory RAL 1015
Anthracite grey RAL 7016
Brown red RAL 3011
Jet Black RAL
Glass Material
STANDARD Clear glass
OPTIONAL Tinted glass
Floor
Bolon Sisal Plain Sand
Bolon Flow Stream
Bolon Graphic
Carpet Camel
Carpet Elephant
Carpet Chianti
Intended use
Technical compliance
European Machine directive 2006/42/EC
European standard EN 81-41
Rated Speed
Max 0,15 m/s inside Europe
Max 0,30 m/s outside Europe
Emergency lowering
Battery-powered
Travel height
250 – 15 000 mm
Top height
Min. 2 225 mm to 4 000 mm
Number of floors
2 to 6 floors
Installation
Recessed installation 37 mm below floor
Installed directly on the floor with a ramp
Operation
Hold to run (press and hold)
One touch operation (press one time) for installations outside europe
Power supply
230 V 1-phase
400 V 3-phase
Drive system
Patented screw and nut system

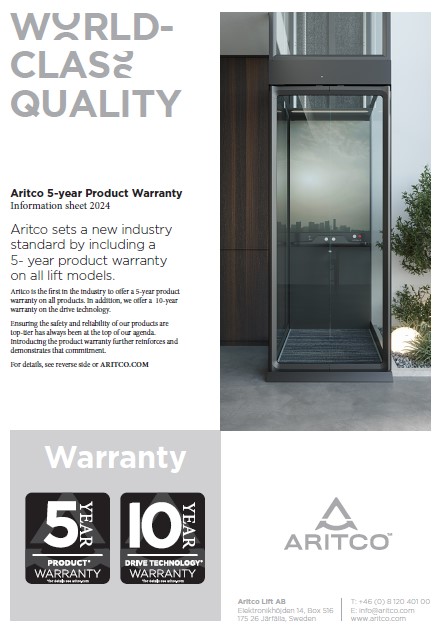

Warranty
Aritco HomeLift comes with a 24 month warranty
The screw and nut assembly has a 10 year warranty
