Aritco PublicLift Cabin

Our cabin lift for public & commercial building. The lift is designed with simplicity in mind.

Explore the Aritco PublicLift Cabin - our cabin lift for public & commercial building.

The lift is designed with simplicity in mind. It looks, feels, performs and operates like a conventional passenger lift. With no machine room or deep pit required, it offers complete freedom in design and simple usability, providing total safety in use. The energy efficient traction drive and fully automatic telescopic doors make it a versatile, cost effective passenger lifting solution

Key features

  • Design, sizes and options tailored for public environments
  • Minimum interventions in the building
  • The lowest maintenance and operating costs on the market
  • Cabin control: Automatic ”one-touch”
  • Eurocode 3 compliant

Technical specifications

Lift Color

Can be painted in any RAL colour from the RAL Classic chart.

Glass Material

Clear glass

Tinted glass

Floor Material

Beige, vinyl

Sand, Vinyl

European oak, Vinyl

Classic Beech, Vinyl

Stud Grey, Rubber

Red, Safe Step

Dark Grey, Safe Step

Light Grey, Safe Step

Grey, Vinyl

Technical Compliance

European Machine directive 2006/42/EC
European standard EN 81-41

Drive System

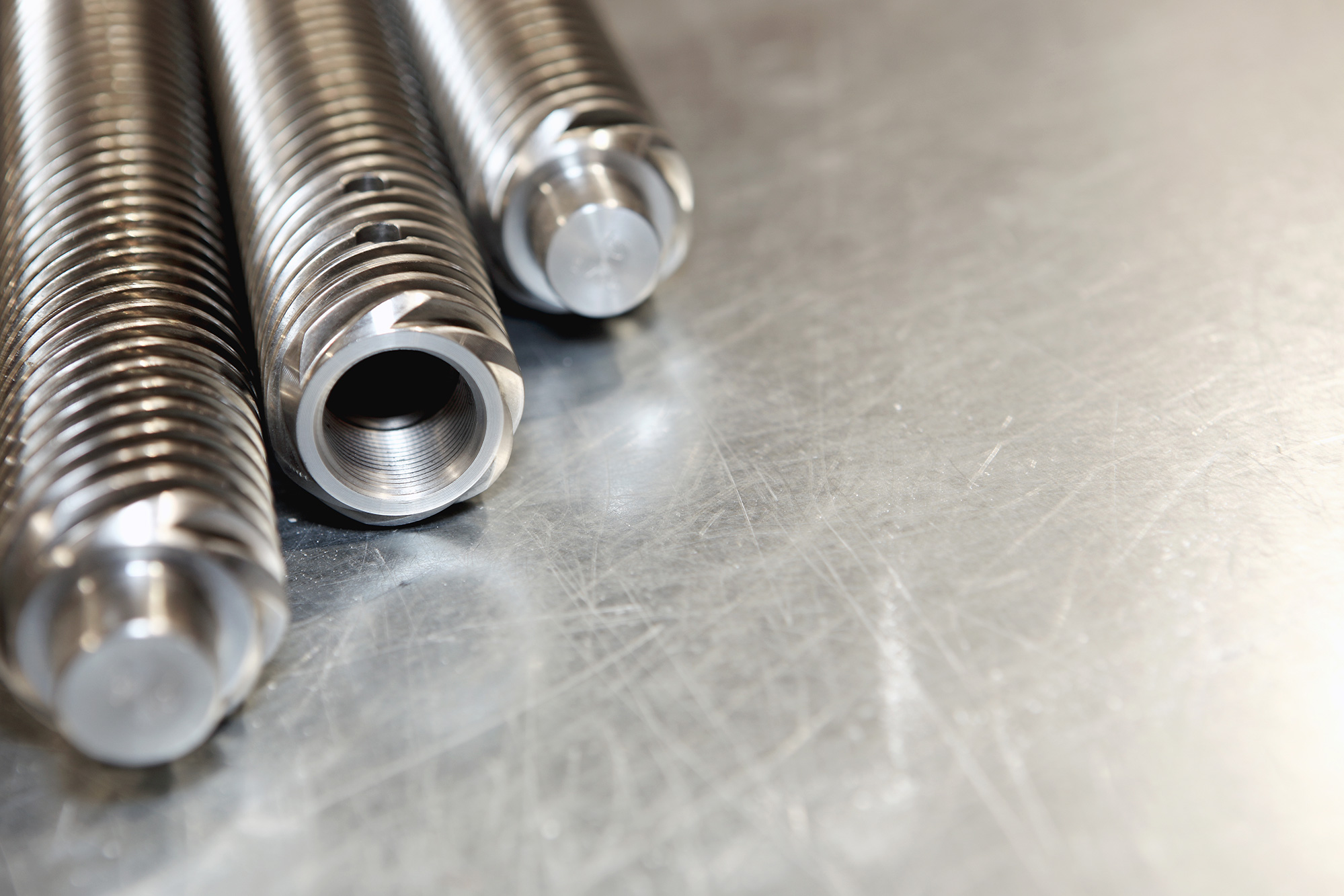

Patented screw and nut system
2.2 kW motor

Rated Speed

Max 0,15 m/s

Travel Height

250 – 13 000 mm

Top Height

Min. 2 240 mm
(1 100 – 1 600 mm with half height door)

Number of Floors

2 to 6 floors

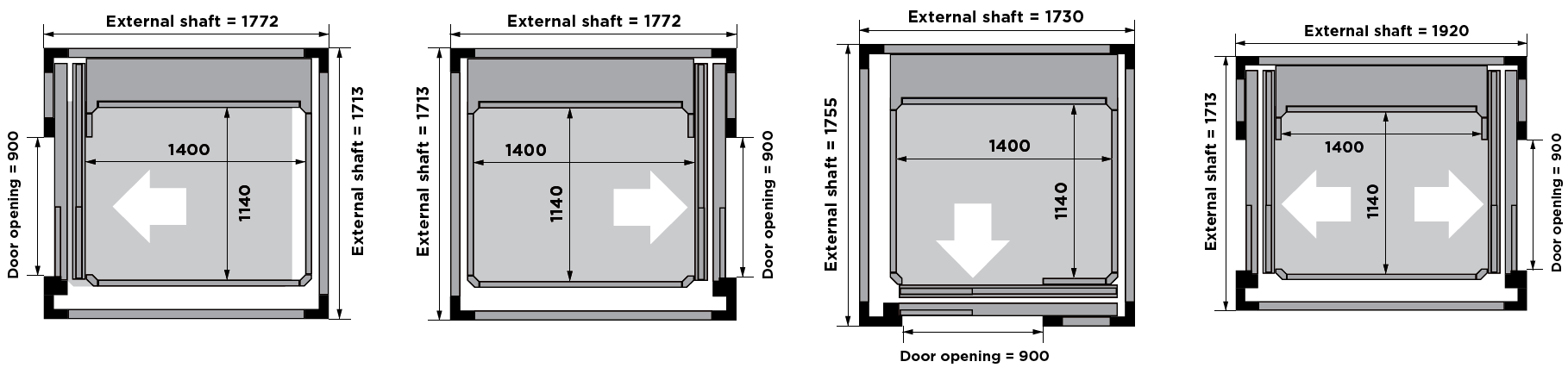

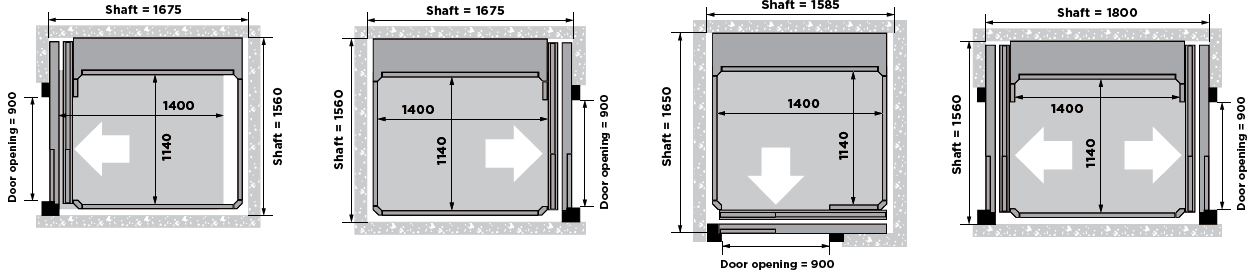

Dimensions

Platform sizes
900 x 1040 mm
900 x 1280 mm
900 x 1480 mm
1000 x 1280 mm
1000 x 1480 mm
1100 x 1480 mm
1000 x 1980 mm
1100 x 1580 mm
Rated load
250 kg
410 kg
410, 500 kg
410 kg
410, 500 kg
410, 500 kg
500 kg
500 kg
Persons
2 pers.
5 pers.
5, 6 pers.
5 pers.
5, 6 pers.
5, 6 pers.
6 pers.
6 pers.
Wheelchair
-
Lone user or type A*
A or B with attendant*
Lone user or type A*
A or B with attendant*
A or B with attendant, adjacent entry*
A or B with attendant*
A or B with attendant, adjacent entry*

Installation

Recessed installation 50 mm below floor
Installed directly on floor with 50 mm ramp

Platform Controls

Hold to run (press and hold)
One touch operation (press one time) for installations outside europe

Application

Public environments
Indoor installation environment

Emergency Lowering

Battery-powered

Power Supply

230 V 1-phase
400 V 3-phase

Warranty

Aritco PublicLift Cabin comes with a 24 month warranty.
The screw and nut assembly has a 10 year warranty.
